While rummaging through old family belongings, I stumbled upon a vintage radio from the 1950s, once owned by my great-grandfather and passed down through generations. I still vividly remember sitting next to my grandfather as a child, listening to the melodies that emerged from that polished wooden cabinet. The warm and immersive sound, the distant voices traveling through time, and the magic of a world brought to life through radio waves created an unforgettable atmosphere.
Today, filled with nostalgia and curiosity, I decided to open the back panel of the Unda Radio 53/17, as if unveiling an ancient relic. Inside, I found a small universe frozen in time: dust-covered gears, vacuum tubes darkened by age, and components long inactive yet still incredibly fascinating. The internal circuitry, with its carefully wound coils, neatly arranged resistors, and capacitors, seemed like the remnants of a bygone era—an age when technology possessed the charm of a nearly artistic mechanical masterpiece. I can still recall the time when this very circuitry sprang to life: the tubes glowing with a soft reddish light, and, as if by magic, the radio waves filling the room with distant sounds and voices.
Front view

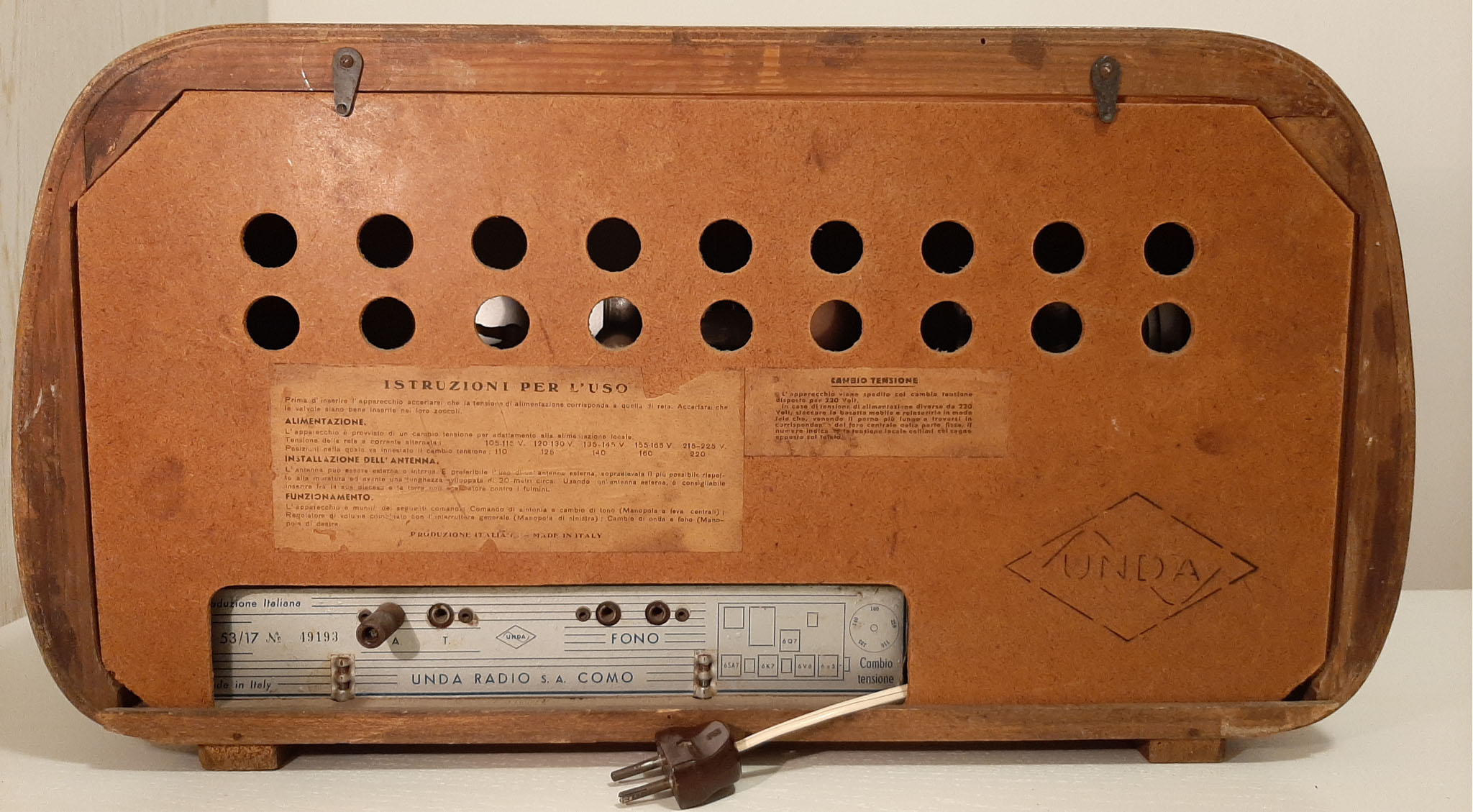

Rear view

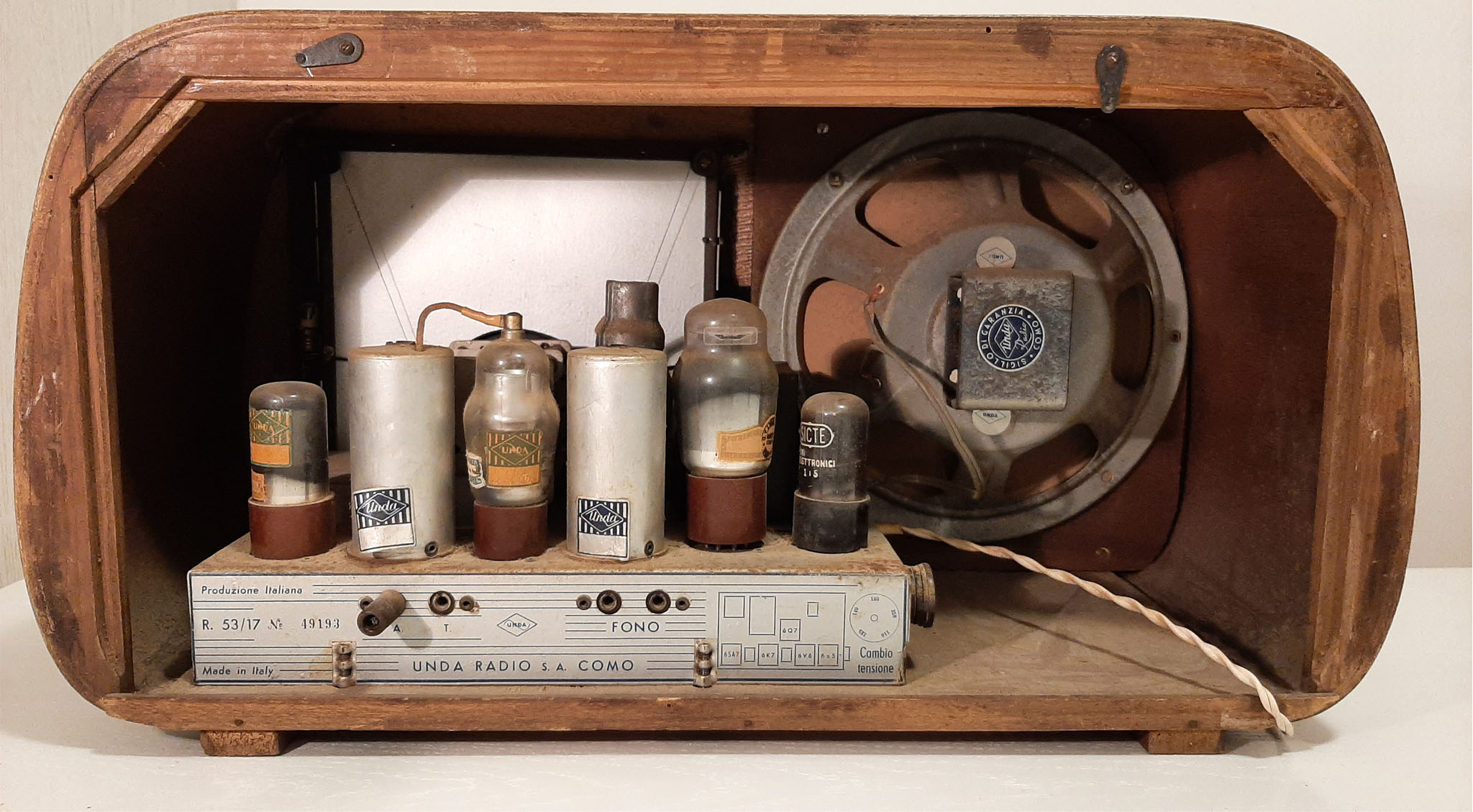

Inside view
Technical Specifications
The Unda Radio 53/17 is a superheterodyne receiver, a technology that ensured clear and stable reception of radio broadcasts. This model features five vacuum tubes:
6SA7 – Frequency converter
6K7 – Intermediate frequency amplifier
6Q7 – Detector and low-frequency amplifier
6V6 – Audio power amplifier
6X5 – Rectifier for power supply
It operates on three wavebands: medium wave and two shortwave bands, with an intermediate frequency of 450 kHz. This allowed it to receive both local and international broadcasts, making it a versatile and widely appreciated vintage radio at the time.

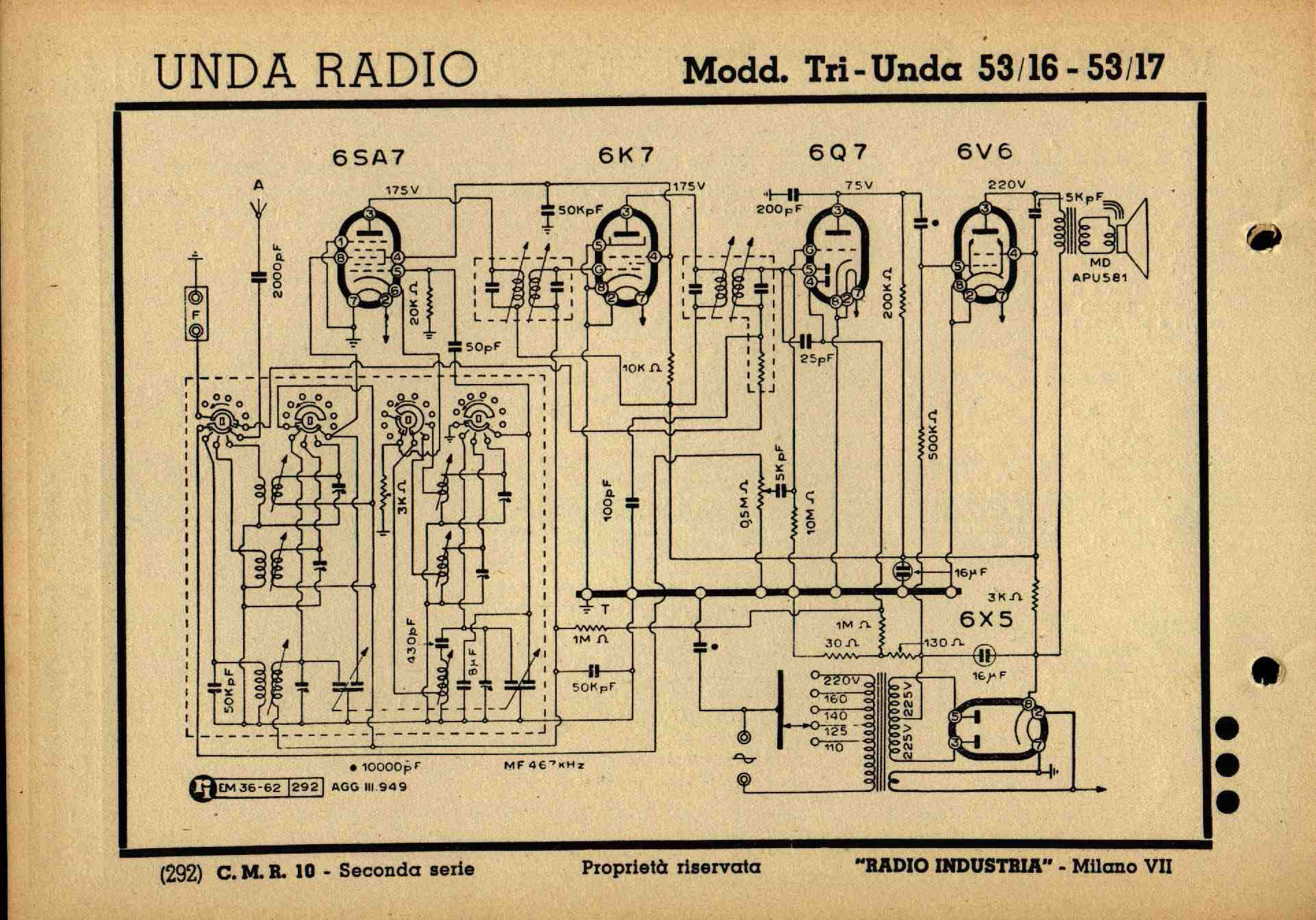

Internal circuit diagram
Design and Construction
The Unda Radio 53/17 features a beautifully crafted wooden cabinet, characteristic of high-end radios of its time. Measuring 520 x 270 x 210 mm, it boasts a compact yet elegant design. The front panel is adorned with a fabric-covered speaker grille and a dial scale with clear frequency indicators, adding to its vintage appeal.
The dynamic speaker with a permanent magnet ensures a warm and rich sound, typical of vacuum tube radios. It operates on AC power, supporting voltages from 110V to 220V, making it adaptable to different electrical conditions.
Historical Context and Significance
After World War II, Italy was rebuilding its industries, and the consumer electronics sector was booming. Unda Radio, already renowned for its high-quality products, contributed to this growth with reliable and well-designed models such as the 53/17.
This radio was not just a household appliance; it was a symbol of progress and modernity in Italian homes. It represented an era when radio was the primary medium for news, entertainment, and connection to the world.
The Unda Radio 53/17 Today

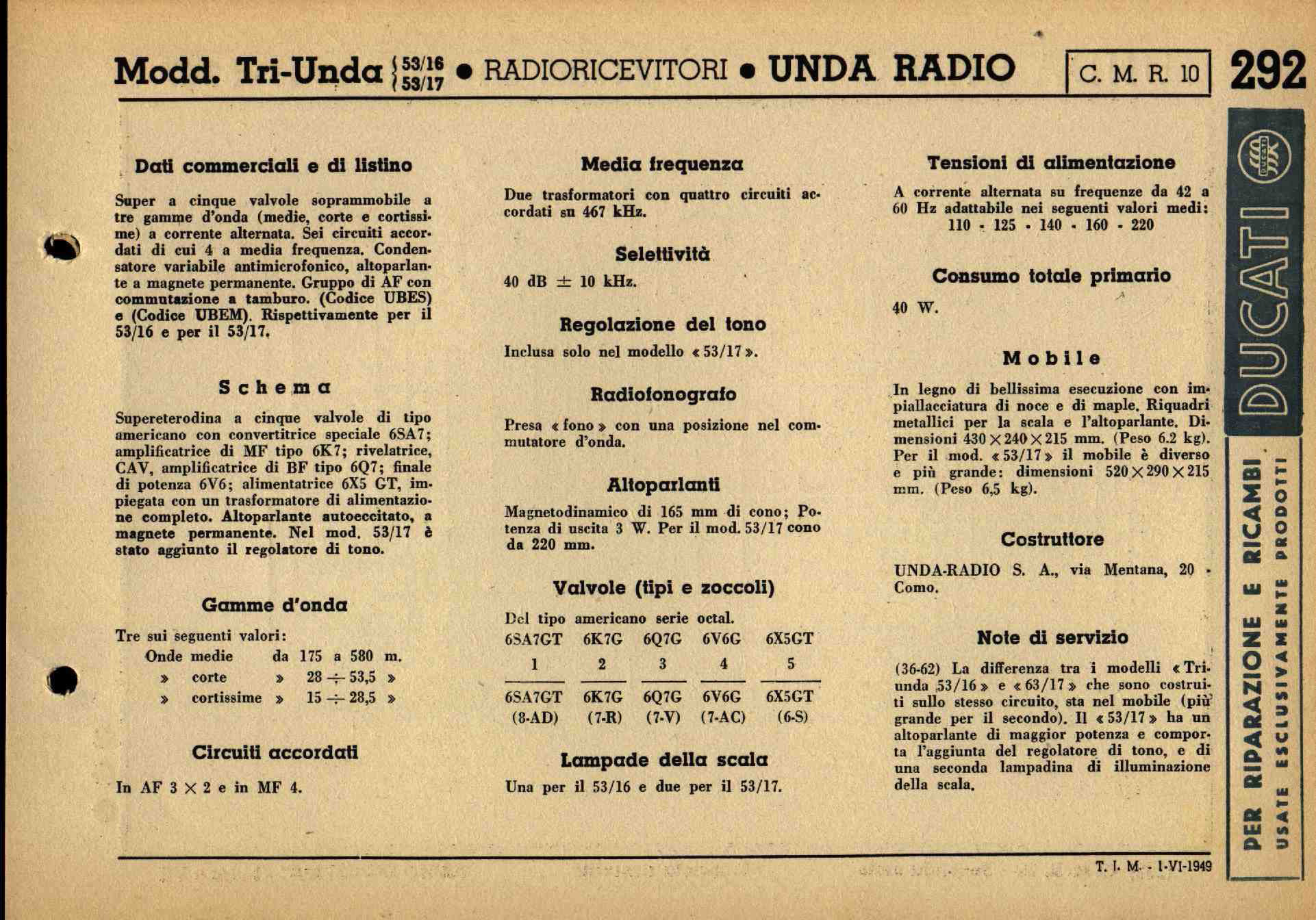

Today, the Unda Radio 53/17 is a highly sought-after piece among vintage radio collectors. Its historical and technical value makes it a fascinating item for retro technology enthusiasts. With the availability of schematics and service manuals on specialized websites like Radiomuseum and RSP-Italy, it is possible to restore and revive these old gems.
If you are passionate about vintage radios or simply captivated by the aesthetics and technology of the past, the Unda Radio 53/17 is undoubtedly a model worth knowing—and, if possible, adding to your collection.
Further Reading
For more details on the Unda Radio 53/17, check out the following links:
